Double Up Standard 2 Rail Portable Horse Float Panels - Simple but Brilliant

We are a stockist of the Genuine Double Up Portable Float Yards, we ship these yards all over Australia to a local freight depot. Designed in Australia they are 100% Australian Owned and Made from Australian Steel.

Double Up portable horse float panels feature a folding design that take up half the space and that are lighter than standard horse float panels.

Specifications of Double Up Horse Fold out horse yard panels;

  • Made from 25mm galvanized square tube
  • Measuring 2000mm long (4000mm when double panel is opened out to form 2 panels)
  • 1200mm high
  • 570mm gap between top and bottom rail
  • 630mm gap between bottom rail and ground
  • Tabs on the legs to peg to the ground (if required)
  • 15kg Each

Notes;

Carrying 7 x 2-Rail Double panels on one side is the legal maximum width on side of your float. This is enough panels to form yards for 2 horses, to create adjoining 4m square horse yards.

  • 3 Double Panels creates 1 x stand alone Small Pony Sized 3m Hexagonal horse Yard or a float yard connected to your float.
  • 4 Double Panels creates 1 x stand alone 4m Square portable horse Yard.
  • 7 Double Panels creates 2 x adjoining 4m Square temporary horse Yards (one panel forms dividing wall)
  • 8 Double Panels creates 2 x stand alone separate 4m Square portable horse Yards

Optional Extras;

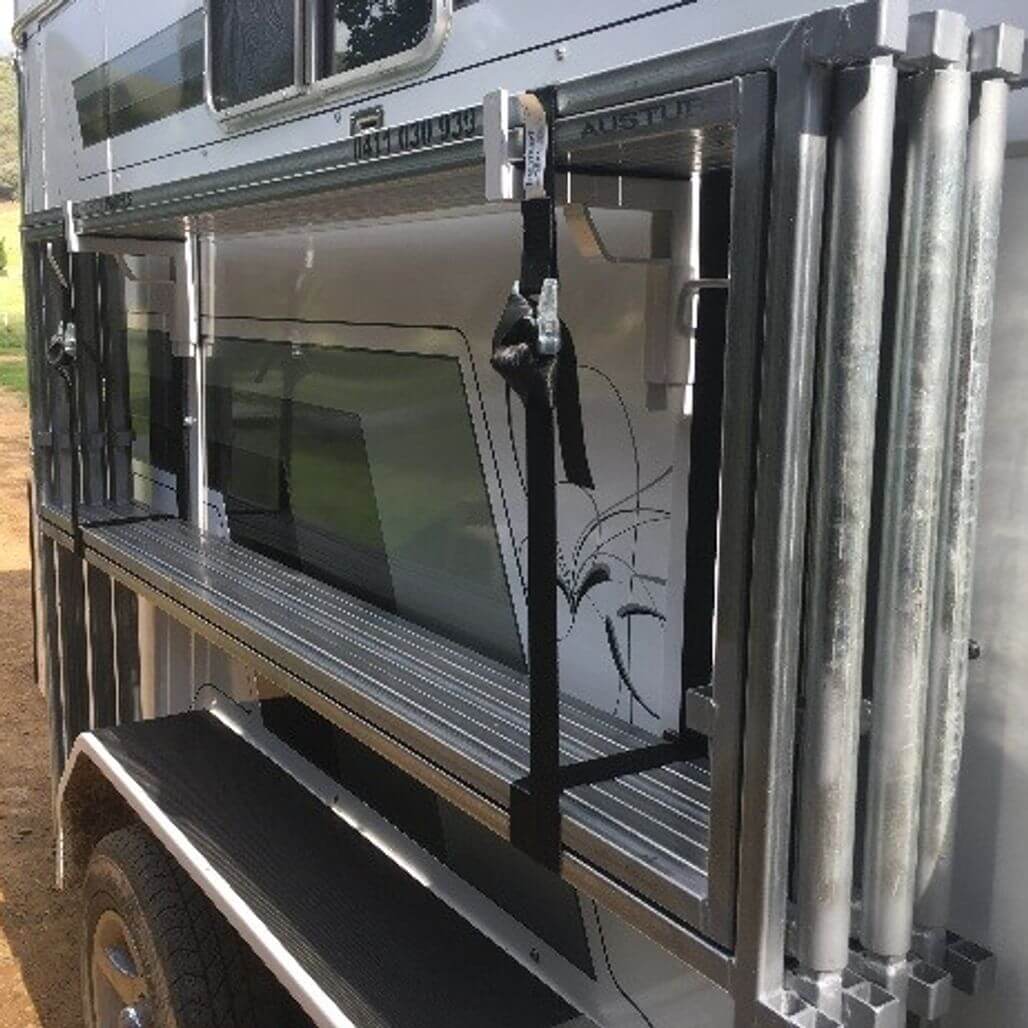

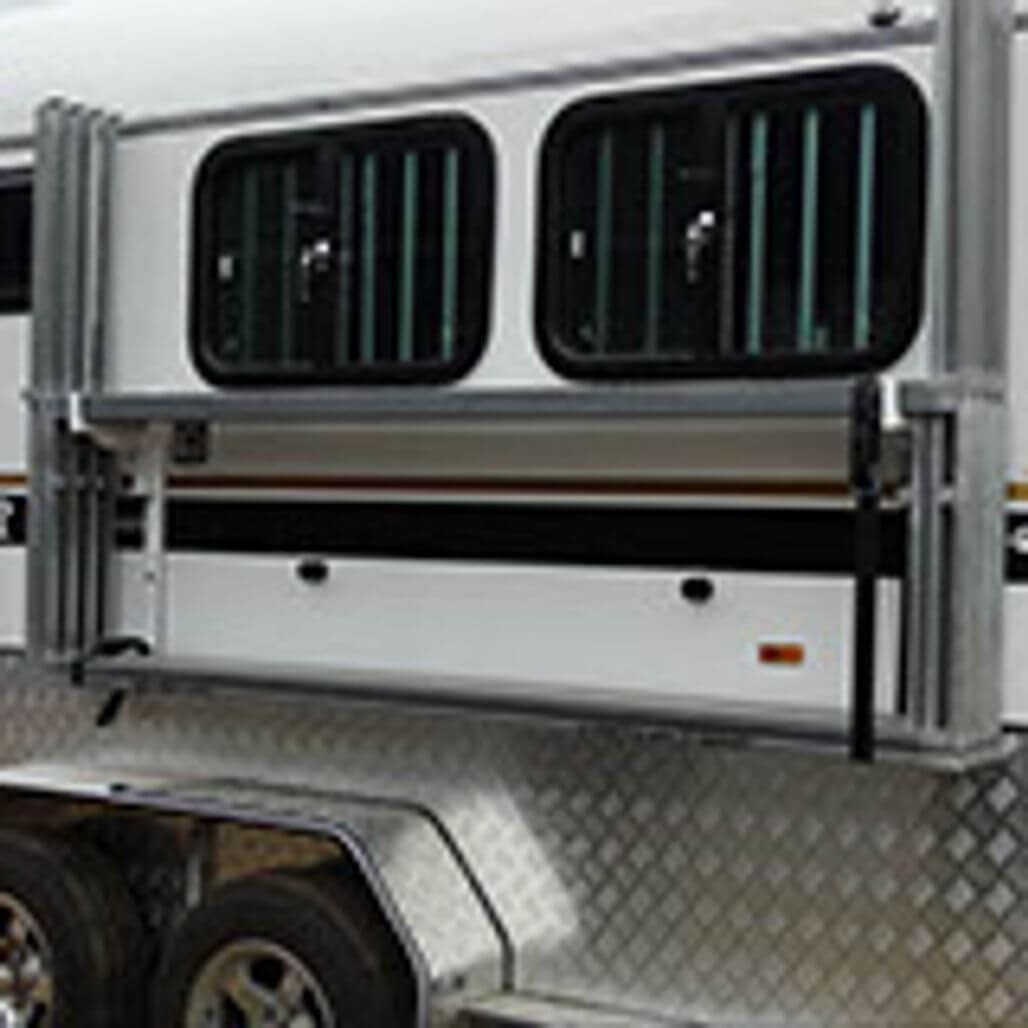

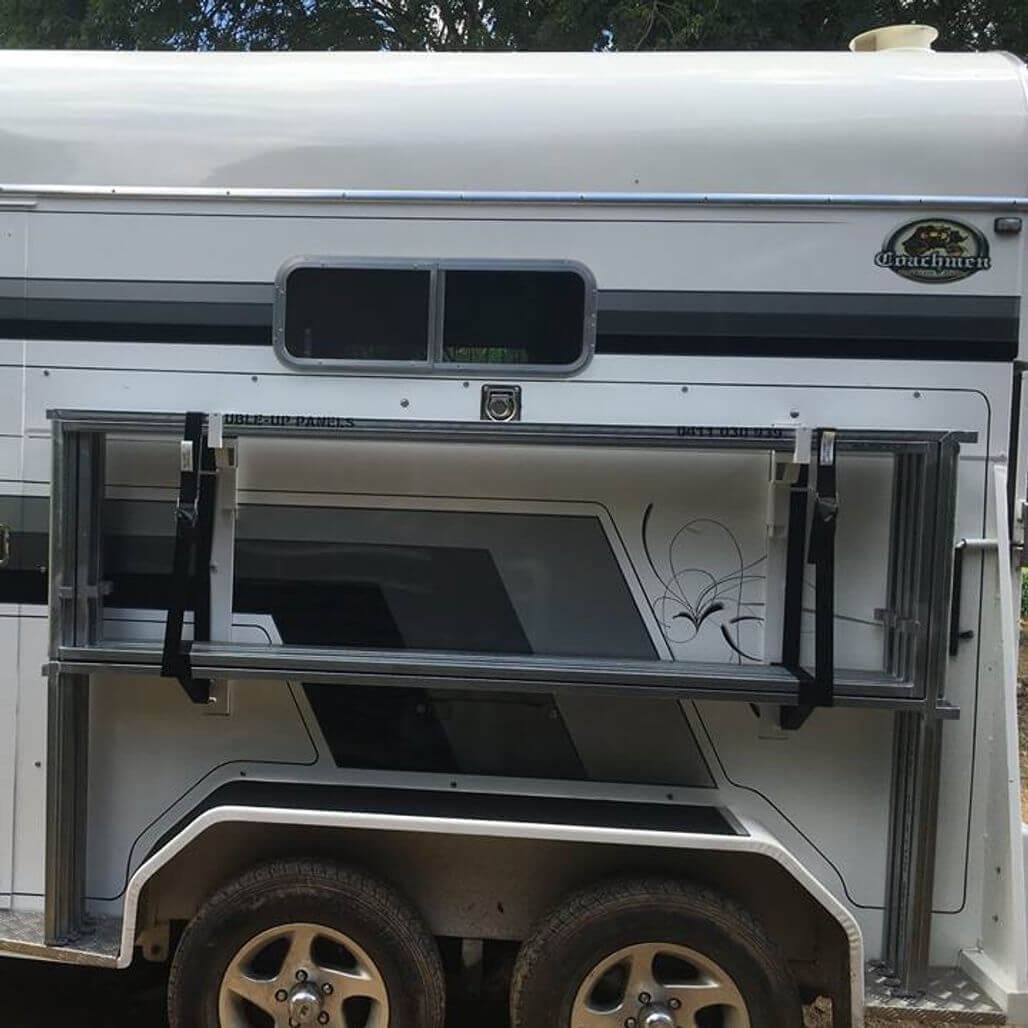

  • Horse Float Mounting Brackets, including instructions on mounting double up horse yard panels to your horse float

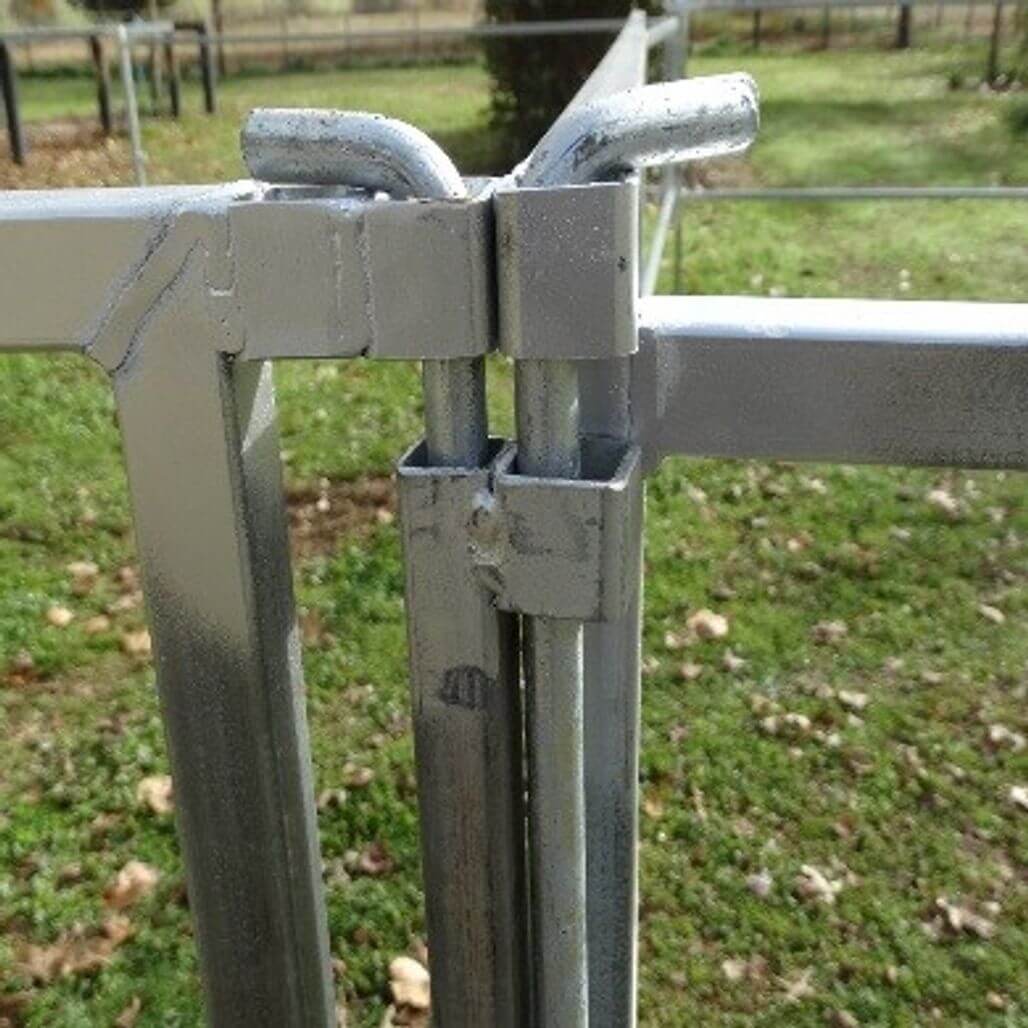

  • Float Attachments (for setting up the portable horse yard off your float)

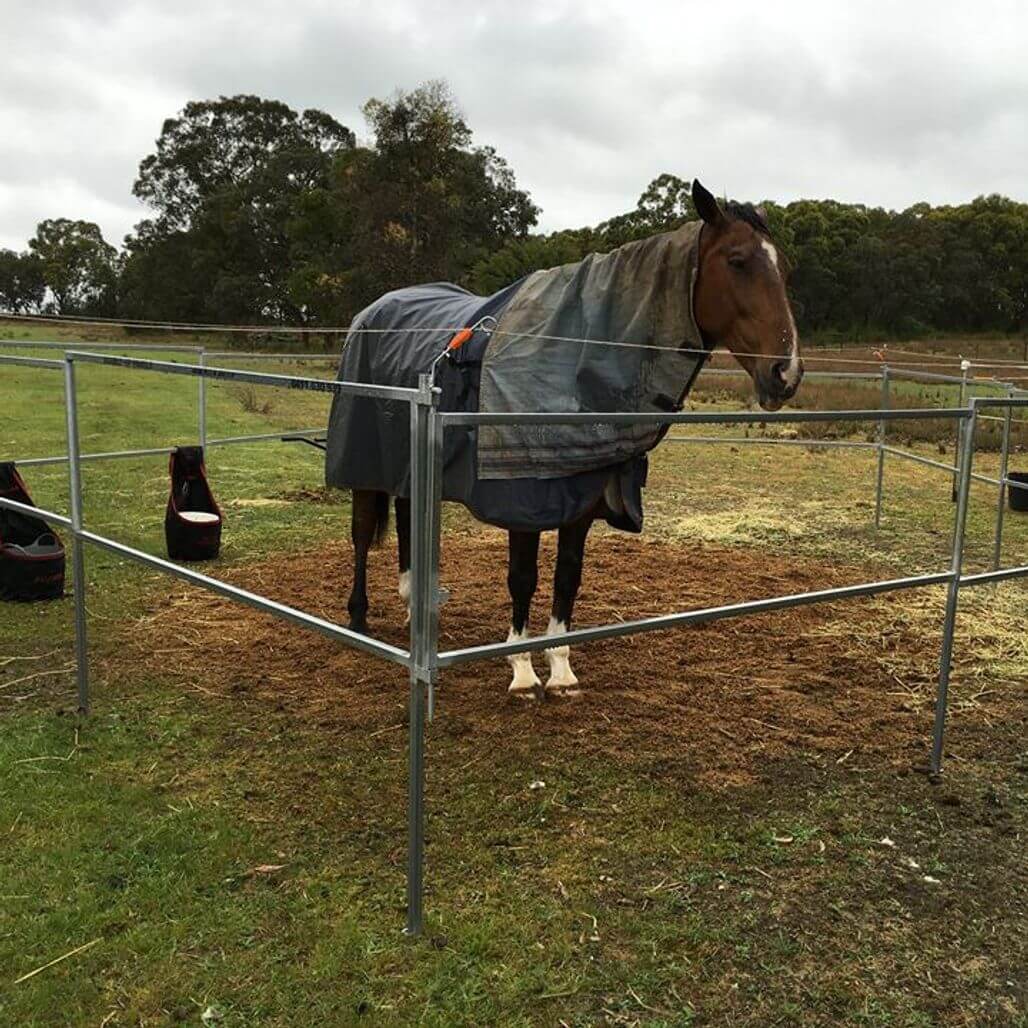

  • Electric Fence Kit

Also available in 3 Rail Panels suitable for ponies and Stallion Panels. We can also custom make sizes to suit your requirements.

Support Australian Manufacturing - Buy Local

FREE LOCAL SHIPPING (CAMDEN, CAMPBELLTOWN, WOLLONDILLY, SOUTHERN HIGHLANDS). $100 to Wollongong, Goulburn. POA for other Areas.

Additional information

Weight 15.0000 kg
Dimensions 2.5000 × 200.0000 × 125.0000 cm
Brand
