SR-1004 | Solar Flood Light 4W

Model : SR-1004

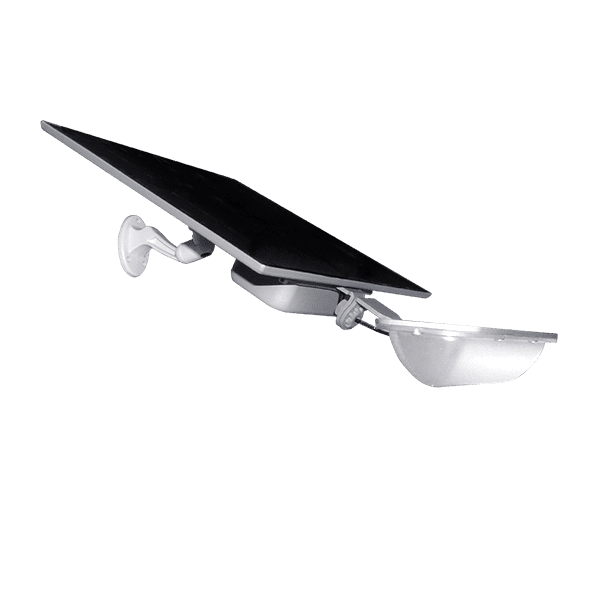

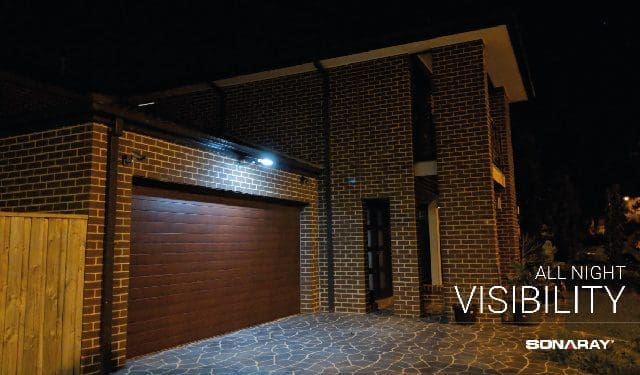

The SR1004 - Solar Flood light kit is light weight and compact. It includes the mounting bracket, battery and solar panels to operate this light for up to 17hrs off a full charge.  Making it perfect for lighting up a rural gateway or sign or the front of your residential house. Commonly used for lighting up real estate sales signs also, as there is only 3 screws required for installation.

Features of this 4 Watt Solar light include;

  • Complete kit (solar panel, battery, bracket)
  • Maintenance Free - no globes to replace
  • Easy DIY install - 3 screws
  • Light is operated by optic sensor. When the natural light dims the solar light gets brighter, as daylight returns the solar light turns off automatically.
  • No need to be in range of a sensor to have light as with sensor lights.
  • Powder coated Aluminium housing
  • Replaceable battery - 4 screws


Power : 4W
Beam Angle : 120°
Luminous Flux : 224 lm (6000K)
Luminous Efficacy : 56 lm/W (6000K)
Lighting Duration : 17hrs*¹
Time to fully charged : 7hrs*²
Battery : 7.4V 15Ah
Solar Panel : 10W
Luminaire Material : Aluminum
Weight : 1.65 kg / 3.64 lbs.
Operating Temperature : -42°C~+50°C,-44°F~+122°F
Warranty : 3 years

Battery Specification
Nominal Capacity : 5000mAh
Cycle Life : 1000 times
Maximum Charge/Discharge Current : 2500mA
Standard Discharge Current : 540mA
Nominal Voltage : 7.4V
Max Charge Voltage : 8.4V
Discharge Cut-off Voltage : 6.0V
Overcharge Detection Voltage : 4.25V±0.05V
Over discharge Detection Voltage : 3.0V±0.05V
Relative humidity : 10%~90%

Note: *1The duration refers to the time for which the luminaire could work continually with the battery fully charged.

*2 The time refers to the duration in which the battery could be fully charged under the effective illumination of the solar panel.

Additional information

Weight 5.0000 kg
Dimensions 8.0000 × 28.0000 × 41.0000 cm
